Ankle Fractures

Ankle Anatomy (http://www.tsaog.com/)

Definition: Fracture of the distal tibia and/or fibula. These regions are commonly referred to as the medial, lateral or posterior malleoli

Mechanism:

• Twisting force on the ankle that leads to supination or pronation of the midfoot relative to the ankle and internal or external rotation of the talus within the joint
• Direct trauma to the distal tibia/fibula

Epidemiology:

• 187 fractures per 100,000 people per year, no gender predominance.
• 60-70% are unimalleolar, 15-20% bimalleolar and 7-12% are trimalleolar

Physical Exam:

• Look for swelling, gross deformity, and inability to bear weight
• Check for skin abnormalities such as laceration, blistering, or tenting.
• Palpate for tenderness at the medial and lateral malleoli, the base of the 5^th metatarsal (Jones fracture) , the navicular bone, and along the entire length of the fibula (Maisonneuve fracture),
• Perform a complete neurovascular exam prior to manipulation and radiographs

Classification Systems

• Lauge-Hansen (Lauge-Hansen 1950)
  • Supination-Adduction (SA): (~20% ankle fractures)
    • Stage 1: Transverse fracture of lateral malleolus below the level of the mortise or lateral ligament tear
    • Stage 2: Oblique fracture of medial malleolus
  • Supination-external rotation (SER): ~60% of ankle fractures
  • Stage 1: tear of anterior-inferior tibiofibular ligament (AITFL) or avulsion of anterior tibia
  • Stage 2:Spiral fracture of the lateral malleolus at and above level of mortise
  • Stage 3: Tear of the posterior-inferior tibiofibular ligament (PITFL) or avulsion of posterior malleolus
  • Stage 4: Transverse fracture of medial malleolus or tear of deltoid ligament (trimalleolar fracture)

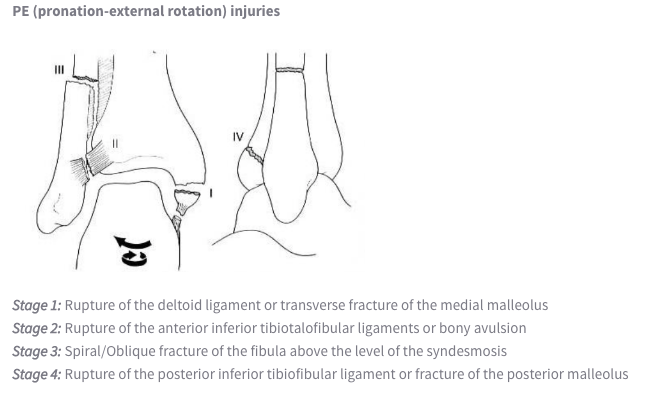

  • Pronation-external rotation (PER): ~20% of ankle fractures
    • Stage 1: Transverse fracture of the medial malleolus or tear of the deltoid ligament
    • Stage 2: AITFL tear
    • Stage 3: High spiral fracture of lateral malleolus above level of mortise
    • Stage 4: PITFL tear or avulsion of posterior malleolus
• Pronation-abduction (PA): <0.5% of ankle fractures
  • Stage 1: Transverse fracture of medial malleolus or tear of deltoid ligament
  • Stage 2: AITFL tear
  • Stage 3: Transverse comminuted fracture of the fibula above the level of the syndesmosis
• Danis-Weber (based on location of fibular fracture)
  • Type A (equivalent to Lauge-Hansen SA)
    • Below the level of the talar dome
    • The tibiofibular syndesmosis and the deltoid ligament are intact
    • The medial malleolus is often fractured
    • Usually stable if the medial malleolus is intact
  • Type B (equivalent to Lauge-Hansen SER)
    • Distal extent at the level of the talar dome
    • The distal tibiofibular joint is widened indicating a syndesmotic injury
    • Medial malleolus may be fractured
    • Variable stability
  • Type C (equivalent to Lauge-Hansen PER)
    • Above the level the talar dome
    • Tibiofibular syndesmosis disrupted
    • Medial maleolus and/or deltoid ligament injury present
    • Almost all are unstable

X-ray Findings

• Ottawa Ankle Rule
  • Should be applied to  determine which patients with traumatic ankle pain need imaging
  • Test Characteristics: Sensitivty 100%, Specificity 40.1% (Stiell 1992)

Ottawa Ankle Criteria (Stiell 1992)

• X-ray of ankle and/or foot indicated if patient has any tenderness at these landmarks
•

  Normal AP Ankle X-Ray (http://posterng.netkey.at/)

  X-ray Views

  • Decreased tibiofibular overlap  (<6mm on AP or <1mm on Mortise)
  • Increased medial clear space (>4mm). Obtain stress view to see if the medial clear space is >5mm with external rotation of a dorsiflexed foot indicating deep deltoid disruption
  • Increased tibiofibular clear space (<6mm on AP and Mortise views)
  • Acquire AP, Lateral, Mortise (15-20 degrees of internal rotation so that the lateral and medial malleoli are in a horizontal line perpendicular to the xray beam)
  • Consider external rotation stress view when there is tenderness to palpation of the medial malleoli or the following
•

  Maisonneuve Fracture (meds.queensu.ca)

  Maisonneuve fracture

  • Spiral fracture of the proximal third of the fibula with an associated fracture of the medial malleolus or rupture of the deep deltoid ligament (PER4 fracture)
  • Palpation along the entire length of the fibular is important in order to pick up signs of this injury as it can be seen in patients with relatively unremarkable ankle X-rays
  • If the patient is discovered to have either a medial malleolus fracture or high fibular fracture on X-ray, tibia-fibula films are indicated to rule out this type of fracture.

• Pilon Fracture
  • Fracture of the distal part of the tibia involving the articular surface with the talus bone
  • Usually occurs in high energy injuries and most likely will require surgery, as these fracture tend to be unstable

Pilon Fracture (http://orthoinfo.aaos.org/)

ED Management

• Open fractures or fractures with neurovascular compromise require immediate orthopedic consultation and treatment
• Ankle fractures with concomitant dislocation need to be emergently reduced
• Obtaining anatomic alignment critical to avoid downstream arthritic changes (even in those requiring operative fixation)

Operative vs. Non-Operative Management

• Generally, one can use Danis Weber classification to distinguish non-operative vs operative management. Type A fractures are almost always non operative. Many Type B fractures require operative management (but not all) and type C fractures tend to all require operative management.
• Non-operative
  • Stable, non-displaced, isolated uni-malleolar fracture (without opposing ligament injury), can be splinted in short leg splint or boot (with ankle at 90 degrees) with early weight bearing as tolerated (Phillips 1985), Mehta 2014)
• Operative:
  • Indications are loss of joint congruency (i.e. pilon fractures) or loss of joint stability
  • Unstable (when two or more sites are significantly injured) and/or displaced fractures require reduction, splinting (posterior ankle with stirrup splint- see picture below), strict non-weightbearing, and future ORIF with follow up within 1 week (Phillips 1985), Mehta 2014)

Prognosis

• Post-traumatic arthritis seen in up to 70% of cases and commonly occurs when the normal anatomy is not restored
• Failure to recognize ankle instability can lead to articular surface degeneration and early osteoarthritis (5% in those with unrecognized unimalleolar fracture vs 20% in those with unrecognized bimalleolar fracture). This is common in those with single malleolus fracture with undetected opposing ligament injury
• Rehabilitation is important component of treatment  to help patients return to baseline range of motion, strength and proprioception (Mehta 2014)

Take Home Points

• Utilize the Ottawa Ankle Rule to minimize the amount of X-rays performed
• It is imperative to perform a good physical exam and to acquire the appropriate imaging to capture fractures that may easily be missed
• Associated dislocations should be reduced and anatomic alignment should be achieved prior to immobilization
• Obtain emergent orthopedic surgery consultation for open fractures or evidence of neurovascular compromise
