Carpal Bones (www.radiologictechnology.org)

Definition: Fracture of the scaphoid (navicular) bone, one of the carpal bones of the wrist

Epidemiology

  • 10% of all hand fractures, 70% of all carpal fractures (Geissler 2001)
  • Incidence of 12.3 in 100,000 each year in general population (Garala 2016)

Mechanism: results from axial load applied to a hyperextended and radially deviated wrist, most commonly after a fall on outstretched hand (FOOSH)

Anatomic Snuff Box (web.duke.edu/anatomy/lab11)

Physical Exam

  • Anatomical snuffbox tenderness to palpation (Carpenter 2014)
    • Presence of tenderness or pain with vibration, radial or ulnar deviation, or resisted supination do not significantly increase the likelihood of a scaphoid fracture
    • Absence of anatomical snuffbox tenderness (LR-= 0.15) is predictive of absence of scaphoid fracture
    • Absence of pain with resisted supination (LR-=0.09) is predictive of absence of scaphoid fracture
  • Clamp sign
    • (+) LR = 8.6
    • (-) LR = 0.40
    • When asked to indicate location of pain, patient forms a “C” with the opposite thumb and index finger and places around thumb
    • Performance characteristics
  • Resisted supination pain
    • (+) LR = 6.1
    • (-) LR = 0.09
    • Resisted supination causes increased pain
    • Performance characteristics

Physical Examination Test Characteristics (aliem.com)

Herbert Classification System (image.slidesharecdn.com)

Classification Systems

Herbert Classification

  • Based on stability of the fracture
  • Unstable fractures
    • Displacement of more than 1 mm or an angulation of more than 15 degrees between the fragments
    • Additional carpal fractures, proximal pole fractures, multi-fragment fractures are also considered unstable (Rhemrev 2011)

Mayo Classification

  • Classified by location of fracture site (Cooney 2013)
  • Waist (middle 1/3) (80%)
  • Distal (20%)
    • Distal tubercle
    • Distal articular surface
  • Proximal (10%)

Mayo Classification System (www.researchgate.net)

X-ray with Scaphoid Fracture (noelhenley.com)

Imaging

  • For suspected scaphoid fractures, standard radiographs include posterior-anterior (PA), lateral, oblique and scaphoid views of the wrist
    • Modified PA view obtained by positioning the wrist in 30 degrees extension and 20 degrees ulnar deviation.
    • This view isolates the scaphoid from the superimposed shadow of the distal radius in the standard PA view (Insert SF 6)
    • Scaphoid view:
    • Up to 20% of scaphoid fractures may not be demonstrated on radiographs even with utilization of scaphoid view (occult fractures) (Waekerle 1987)

Scaphoid View (image.slidesharecdn.com)

  • Scapholunate Ligament Disruption (s-media-cache-ak0.pinimg.com)

    Associated scapholunate ligament disruption

    • Suggested by  >3 mm space widening between the scaphoid and lunate (also called “Terry Thomas” sign) and should be evaluated on every set of radiographs
    • Unclear prevalence of concurrent injury with scaphoid fracture, however thought to be underestimated in the literature (Chun-Ying 2004)
  • If clinical suspicion for scaphoid fracture is high with negative radiographs, advanced imaging techniques may be employed for diagnosis
    • Sensitivity of 88 percent and specificity of 100 percent.  It can also diagnose soft tissue injuries such as ligamentous damage  (Mallee 2015)
    • (+) LR = 22.0
    • (-) LR = 0.09
    • Most sensitive in the acute setting: < 24 hours post-injury
    • Sensitivity = 72 percent
    • Specificity = 99 percent
    • (+) LR = 15.4
    • (-) LR = 0.23
  • CT and MRI can also evaluate degree of displacement and fracture pattern
  • Bone scan has high sensitivity (99 percent), but found to have low specificity (86 percent) (Mallee 2015)

ED Management

  • Non-displaced
    • Patients should be placed in a short-arm thumb spica splint with the hand in “wine glass position” (slight dorsiflexion at wrist, digits in slight flexion)
    • Follow-up with an orthopedist in 14 days for repeat x-rays and possible transition to cast
  • Displaced or unstable fractures should be placed in a long arm thumb spica splint and referred to hand surgery follow-up as early as possible
  • Due to high rate of false-negative x-rays in the immediate post-injury period, patients with snuffbox tenderness on exam or suspected fracture should be managed as having a non-displaced fracture due to significant complications that can occur

Avascular Necrosis of the Scaphoid Bone (www.guildfordupperlimb.co.uk)

Complications

  • Avascular necrosis
    • The scaphoid blood supply comes from the dorsal branch of the radial artery coursing retrograde (proximal 80% of scaphoid) and superficial palmar arch (distal 20% of scaphoid).
    • No direct blood supply to proximal portion of the bone
  • Delayed union, malunion, or non-union are often associated with fractures that are inadequately immobilized
  • Radiocarpal arthritis with associated wrist pain and stiffness
    • Prevalence of up to 5% of scaphoid fractures even when correctly immobilized and healed (Lindström 1990)

Scaphoid Fracture

Download File (103.87K)

Scaphoid Fracture Summary (PDF)

Take Home Points

  • The scaphoid is the most commonly fractured carpal bone.  Always consider this injury in a patient with a fall on an outstretched hand
  • Immediately after injury, as many as 20% of scaphoid fractures may be missed on x-ray even when dedicated scaphoid films are obtained
  • Scaphoid fractures are a “can’t miss” ED diagnosis due to the high morbidity associated with their complications.  Treat clinically suspected fractures (e.g. patients with snuffbox tenderness) as having non-displaced fractures, even in the setting of negative x-rays

Read More

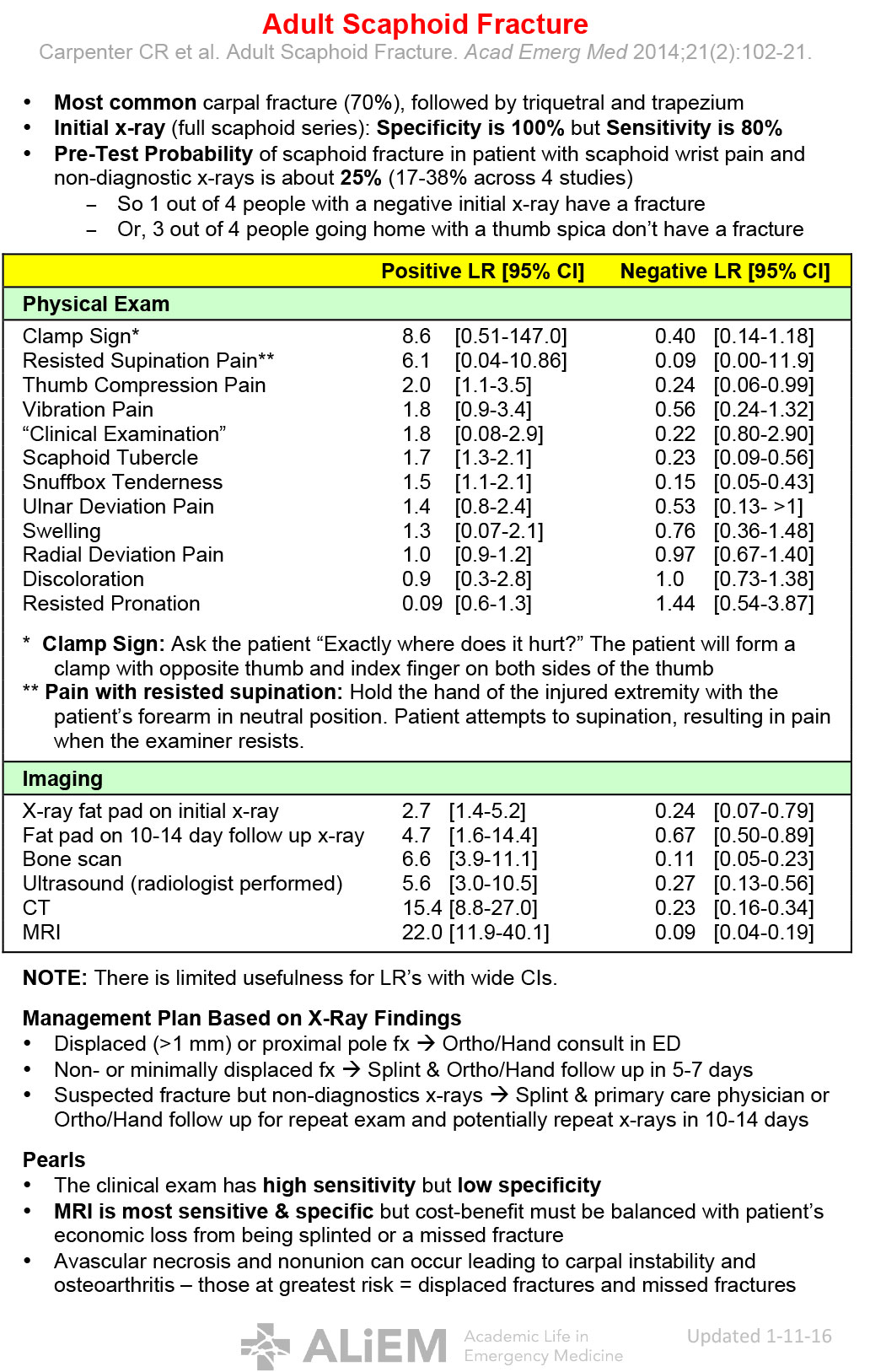

ALiEM: PV Card Adult Scaphoid Fracture

ERCast: Splint Like a Pro – Thumb Spica Splint

Simon RR, Koenigsknecht SJ. Emergency orthopedics: The extremities. New York: McGraw-Hill 2011
